Top 10 Rarest Football Head Harness Styles 1894-1925 (Page 2)

The improved head harness refers to a style developed around 1898-1900 that typically consisting of a hard shell crown made of sole leather with padded ear flaps attached to the sides of the crown. The earliest variations of the improved head harness, such as the Spalding No. 50 (1899), included a leather strap across the forehead and metal rivets connecting the leather straps to the shell. By 1900 these features were removed. The improved head harness was manufactured primarily by Spalding between 1899 and 1903, but other examples from unnamed manufacturers also exist. Manufacturers discontinued the production of improved head harnesses in 1903 when the Intercollegiate Football Rules Committee banned the use of sole leather in football head harnesses.

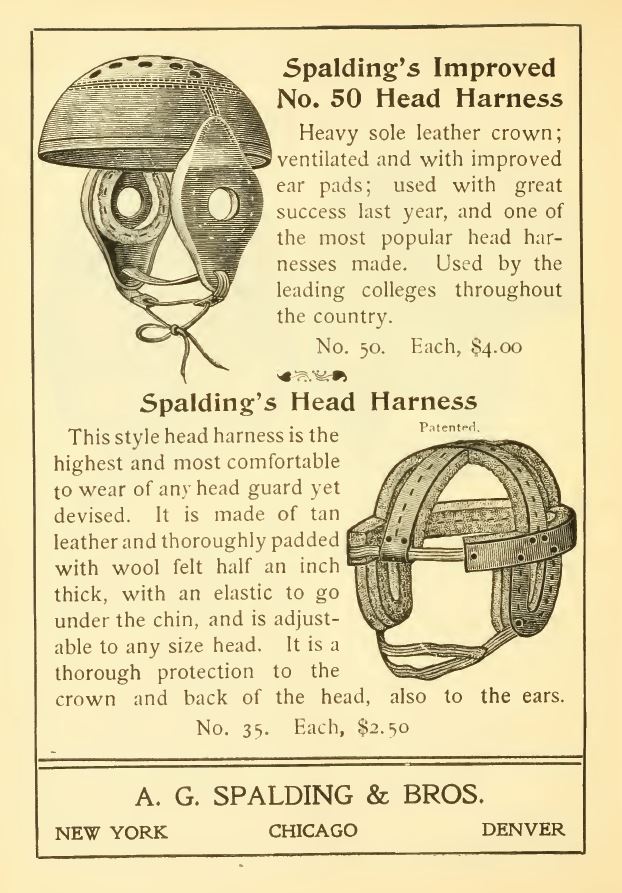

No. 50. Heavy sole leather crown, filled with air holes and lined with lamb's wool padding. Ear protectors heavily padded with felt. Used by the leading colleges and is the best and most practical head harness yet made. Each, $4.00.
Description from the Spalding Foot Ball Guide for 1899:
Surviving Example Estimate
< 30
Estimated Value in VG/EX Condition $2,500 - $7,500

Chicago Head Harness

3.
With just a 3 year production run (1901-1903) the No. 30 Chicago Head Harness ranks as our #3 rarest head harness style. A hybrid between a 4-spoke and an improved head harness, the No. 30 was exclusively manufactured by Spalding. The No. 30 was given the name the "Chicago Head Harness" because it was developed by the head trainer at the University of Chicago. A very light and airy head harness, the No. 30 provided relatively minimal padding for the crown of the head.

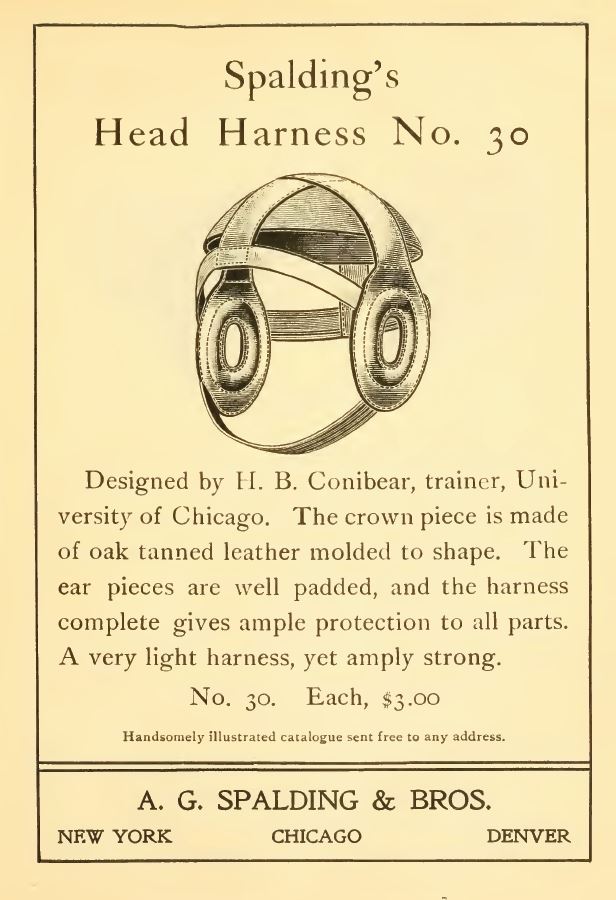

Designed by H.B. Conibear, trainer, University of Chicago. The crown piece is made of oak tanned leather molded to shape. The ear pieces are well padded, and the harness complete gives ample protection to all parts. A very light harness, yet amply strong.
Description from the Spalding Foot Ball Guide for 1902:
Surviving Example Estimate
< 10
Estimated Value in VG/EX Condition = $7,500 - $12,500
No. 30. Each, $3.00

Pneumatic Head Harness

2.
The second rarest head harness in existence owes its ranking to its utter failure when used on the football field. The Spalding No. 70 Pneumatic Head Harness utilized a rubber bladder in the crown of the harness to act as a shock absorber. The harness proved to be hot and unreliable as the bladder was known to rupture after a few blows. As a result, the No. 70 was only produced for two years (1903-1904) and the vast majority of those produced were likely discarded after failure.

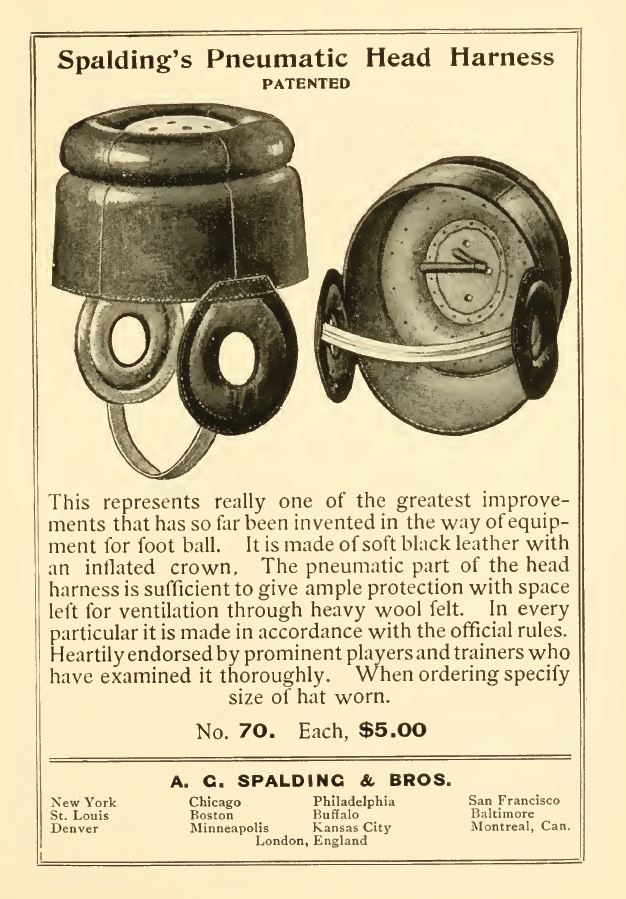

This represents really one of the greatest improvements that has so far been invented in the way of equipment for foot ball. It is made of soft black leather with an inflated crown. The pneumatic part of the head harness is sufficient to give ample protection with space left for ventilation through heavy wool felt. In every particular it is made in accordance with the official rules. Heartily endorsed by prominent players and trainers who have examined it thoroughly. When ordering specify size of hat worn.
Description from the Spalding Foot Ball Guide for 1903:
Surviving Example Estimate
< 5
Estimated Value in VG/EX Condition = $8,000 - $20,000
No. 70. Each, $5.00
c.1899 Spalding No. 50
c.1900 Spalding No. 50
c.1901 Spalding No. 30
c.1903 Spalding No. 70

4-Strap Head Harness

5.
The first head harness designed for every game use, the 4-strap is our #5 rarest head harness style. The 4-strap isn't higher on our list because it was the primary style harness available to players for a relatively long production run of 1896 to 1902. The earliest models, such as the Spalding and Reach No. 35 head harnesses, are extremely scare and would be higher on our list if considered separately. Manufactured by Spalding and Reach between 1896 and 1902, 4-straps were also made by other manufacturers and leathersmiths until around 1910. The Spalding Foot Ball Guide for 1899 describes the No. 35 as follows:
This style head harness is the lightest and most comfortable to wear of any head guard yet devised. It is made of tan leather and thoroughly padded with wool felt a half-inch thick, with an elastic to go under the chin and is adjustable to any size head. It is a thorough protection to the crown and back of the head, also to the ears. Each, $2.25.
Surviving Example Estimate
50
Estimated Value in VG/EX Condition = $2,500 - $8,000
c.1898 Reach No. 35
c.1898 4-spoke

Improved Head Harness

4.

Spalding No. 25 Ear Protector

1.
The #1 rarest football head harness style is without question the Spalding No. 25 Head Harness/Ear Protector. Designed to be worn by players with damaged ears, this style harness also came as the No. 15, which only included one ear protector pad. The No. 25 afforded practically no protection to the crown of the head. The sole surviving known example of a No. 25 is on display at the Pro Football Hall of Fame in Canton, Ohio.
Especially intended for protection to ears. The harness is made of special tanned leather, the padding for ears of soft material and open in centre to allow same to entirely surround ear and rest against the head.
Surviving Example Estimate
1?
Estimated Value in VG/EX Condition = $10,000 - $20,000
No. 15. Protector for one ear.....................$2.00
No. 25. Protector for both ears....................$2.50
